94140


The No. 94140 HAND CRIMPING TOOL is for use with insulated and non-insulated terminals and a broad range of terminals and connectors including Dead End Connectors and Crimp Sleeves (ELECTRO-FAST Products with the prefixes "BB", "SC", and "DC" with wire ranges fromm 22 AWG through 10 AWG). This tool also strips wire gauges 22 AWG throgh 10 AWG and can cut small machine screws 4-40 through 10-32.

94144



94145



94284

The No. 94284 PROFESSIONAL CRIMPING TOOL features compound action which exerts maximum available force for fast, reliable crimps every time. One screw adjustment provides for easy calibration to compensate for die wear. The diamond shape crimp compresses all strands together to form a solid mass of copper assuring a low resistance connection.


Controlled cycle ratchet mechanism is a quality control device. Once a crimp is started, the tool will not open until the crimp is completed. A quick release lever allows tool to open at any time.

(NOTE: SPECIAL ORDER ITEM)

94700



94840


The No. 94840 COMPACT CRIMPING TOOL is a hammer or vice combination tool delivering reliable crimps on 6 Gauge through 4/0 insulated terminal splices, battery cables, lugs, and solderless battery cable terminals

ABC-500

The ABC-500 HAND CRIMPING TOOL is ELECTRO-FAST's most economical crimping tool which will crimp most insulated and non-insulated terminals and connectors from 22 AWG through 10 AWG.

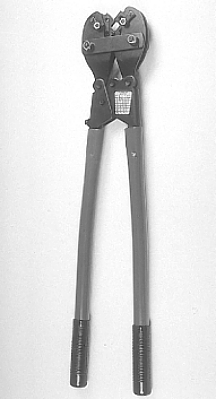

WT-115A

The WT-115A LARGE GAUGE CRIMPING TOOL crimps non-insulated terminals and connectors from 8 AWG through 2 AWG. The adjustable rotating die head selects the desired wire gauge.
